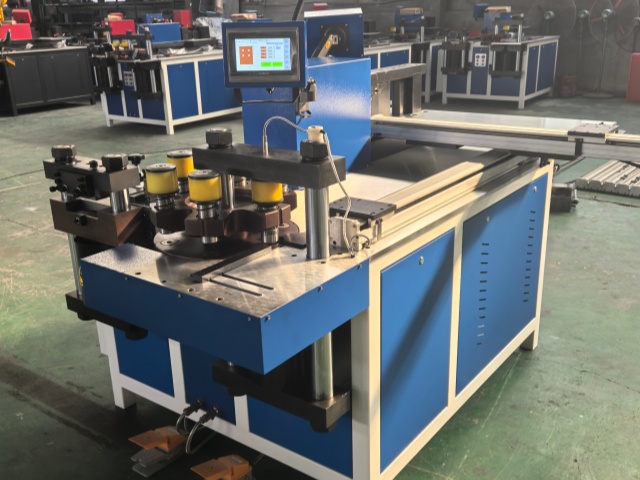

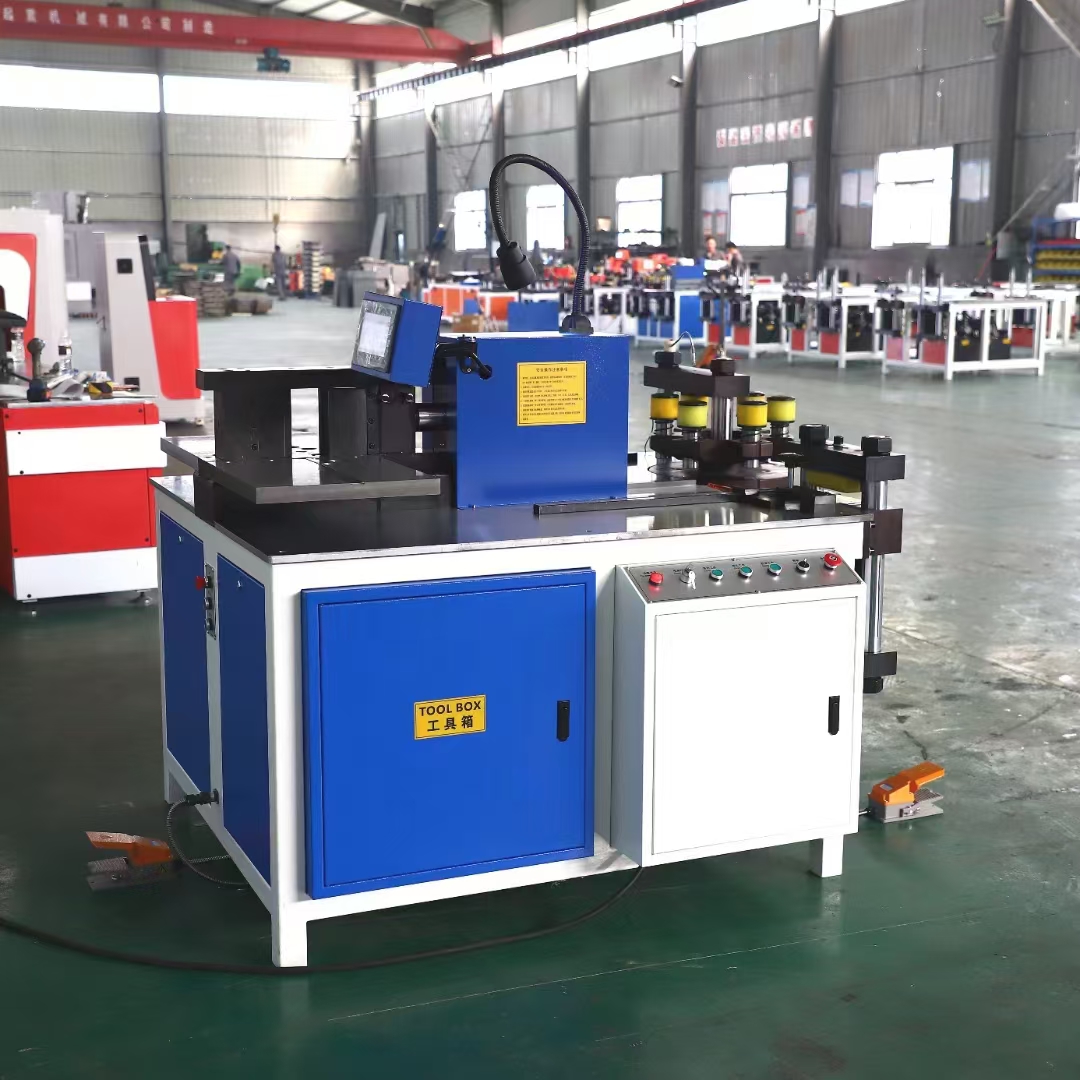

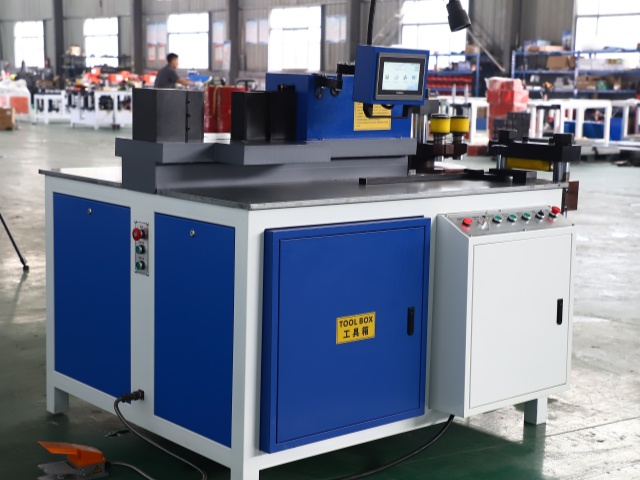

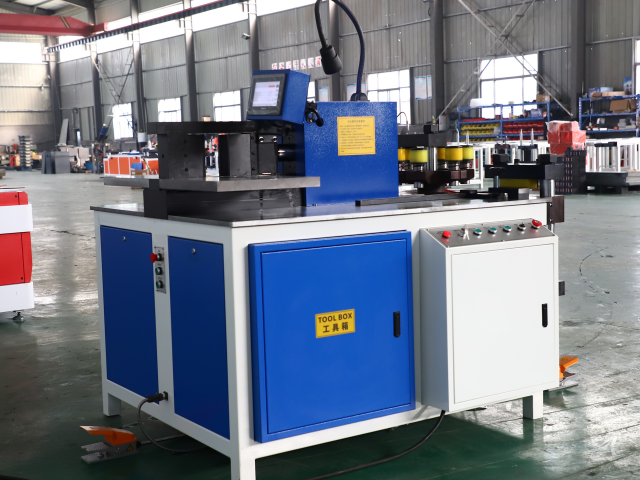

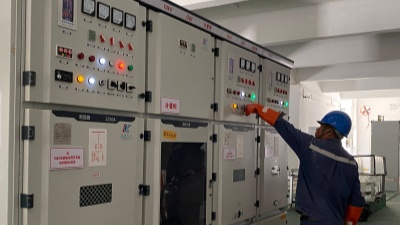

In high- and low-voltage switchgear, power distribution equipment, transformers, and new energy and energy storage industries, copper busbars and aluminum busbars are core components for electrical power conduction. Hydraulic busbar machines are currently the mainstream integrated busbar processing equipment in the power sheet metal processing industry. They integrate three core processes—punching, bending, and cutting—into one machine frame. Powered by a hydraulic system that provides stable force, the three processes can operate simultaneously or separately, enabling efficient and convenient standardized batch processing of copper and aluminum busbars. They are standard equipment for the standardized upgrading of power equipment factories in China and overseas.

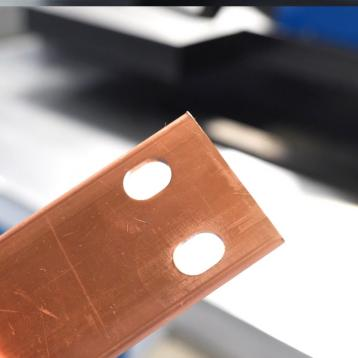

1.Working Principle of the Hydraulic Punching Station The punching station applies uniform vertical pressure through a hydraulic cylinder, working with a standard integrated six-die punching tool to vertically punch the securely fixed copper busbar. The punched holes are smooth and regular, meeting subsequent assembly requirements. For high-volume, high-precision production where punching and cutting are the main processing operations, a dedicated automatic busbar punching and shearing machine can also be selected.

2.Working Principle of the Hydraulic Bending Station The bending station adopts a hydraulic bending structure. Through a hydraulic cushioning design, it adjusts to the busbar thickness and angle requirements and works with dedicated bending dies to achieve precise forming. The hydraulic cushioning design ensures consistent bending angles and standardized radii, significantly reducing assembly errors in subsequent processes. For production scenarios that require independent busbar bending, a dedicated automatic busbar bending machine can also be selected according to the processing requirements.

3.Working Principle of the Hydraulic Cutting Station The cutting station adopts a notching-type hydraulic shearing structure. High hydraulic pressure output can cut thick copper busbars and wide aluminum busbars in a single operation. The cuts are smooth and clean, with no material waste and no need for secondary grinding, making it well suited to the high-standard processing requirements of the power industry.

Hydraulic busbar processing machines use a fully hydraulic power system, providing high pressure and strong power; stable operation and low vibration; a low failure rate and durable structure; and strong die compatibility with support for non-standard customization. Therefore, foreign trade factories, complete switchgear manufacturers, and new energy storage manufacturers prioritize hydraulic busbar processing equipment with significant advantages.

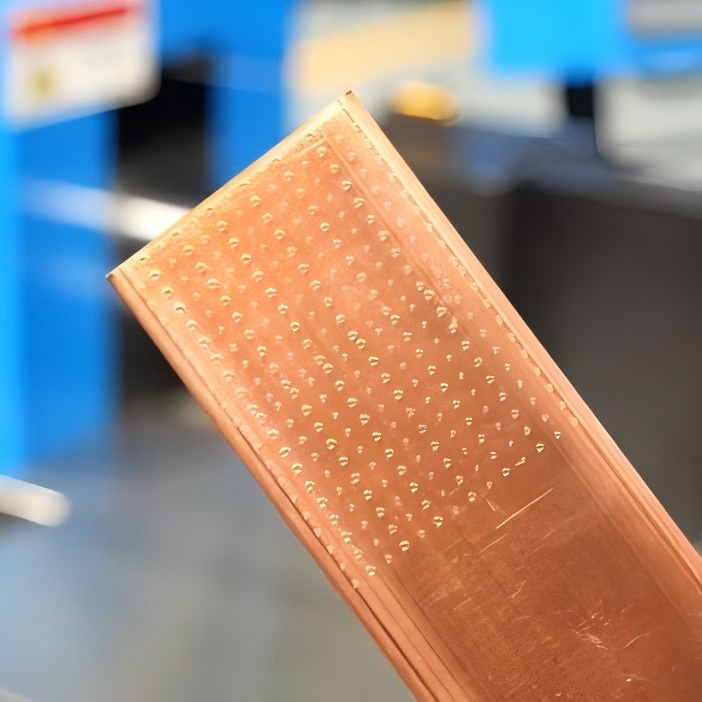

Copper has a relatively high electrical conductivity, enabling effective current transmission, and also has good mechanical strength and corrosion resistance. Therefore, it is widely used in electrical equipment such as switchgear, distribution cabinets, and transformers. Aluminum has a lower density and lighter weight, while also offering good electrical conductivity and workability. It has certain advantages in applications where equipment weight and cost are important considerations.Because both copper and aluminum busbars can conduct electricity effectively and can be processed into busbar structures with different widths and thicknesses, they are highly suitable as conductive connection materials in electrical power transmission and distribution equipment.

Hydraulic busbar processing machines are mainly used for punching, bending, cutting, and other processing operations on copper busbars and aluminum busbars. They are suitable for the manufacturing of high- and low-voltage switchgear, distribution cabinets, transformers, and power transmission and distribution equipment. To meet the processing requirements of different materials, the machine can be used as a copper busbar processing machine for copper busbar processing and as an aluminum busbar processing machine to meet the processing requirements of aluminum busbars.

Standard models can cover most conventional power busbar processing requirements. For extra-thick busbars used in high-voltage cabinets and large-scale energy storage projects, heavy-duty hydraulic processing equipment can be customized. Fenghua brand busbar processing machine manufacturer produces three models of hydraulic busbar processing machines: MX-303KSSK, MX-503BSSK, and MX-803BSSK. We also provide various types of equipment, including CNC busbar processing machines, busbar bending machines, busbar punching and shearing machines, busbar arc processing centers, and double-head busbar bending machines, to meet the requirements of different processing processes and production scales.

Hydraulic busbar processing machines are widely used in the global electrical power equipment manufacturing industry and are essential equipment for electrical equipment manufacturers:​

1. High- and low-voltage switchgear, distribution box, and distribution cabinet production​

2. Transformer and rectifier equipment manufacturing​

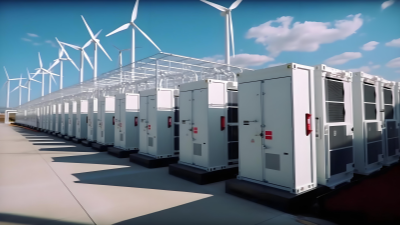

3. Photovoltaic energy storage and supporting electrical equipment for wind power​

4. New energy battery cabinets and complete charging pile equipment​

5. Industrial automation power distribution and supporting municipal power engineering

1.The equipment is equipped with a uniform-speed hydraulic punching system and a precise limiting and positioning structure. It is suitable for common copper busbar punching requirements with a busbar processing machine, helping to solve issues such as punching position deviation and inconsistent hole diameters, as well as alignment difficulties during switchgear assembly, significantly reducing the error rate in busbar assembly.

2.Large Batch Variations in Copper Busbar Bending Angles Large batch variations in copper busbar bending angles can result in inconsistent finished product appearance and specifications, leading to a low quality inspection pass rate.​ Constant-pressure hydraulic bending combined with dedicated standard bending dies keeps angle deviations extremely small, solving problems such as inconsistent finished product specifications and low quality inspection pass rates, while supporting standardized processing of busbars in large batches.

3.High-precision alloy hydraulic shearing blades produce smooth, flat, burr-free cut surfaces. After processing, the busbars can be directly used for complete cabinet assembly, eliminating the need for a grinding process.

4.The compact integrated machine body combines three processing stations—punching, shearing, and bending—into one unit, consolidating all processing operations and increasing overall production capacity by more than 30% within the same workshop space.

When purchasing hydraulic busbar processing machine, users are advised to focus on the following key points to avoid potential problems:​

1.Machine frame rigidity: Choose a heavy-duty machine frame with an overall welded structure, which is less likely to deform during long-term operation.​

2. Hydraulic system configuration: Use genuine hydraulic components to ensure stable pressure, prevent oil leakage, and provide high durability.​

3.Die precision: Standard high-precision dies with support for customized non-standard dies.​

4. Operation method: Manual and semi-automatic options are available, making the machine easy for beginners to operate.​

5. Manufacturer after-sales service: Complete machine warranty, spare parts supply, and remote technical support.

Driven by power grid upgrades, photovoltaic and energy storage projects, and data center power distribution construction, demand for copper and aluminum busbar processing continues to grow. With the integrated advantages of punching, shearing, and bending, three-in-one hydraulic busbar processing machines occupy less floor space and require less manual labor. They are gradually replacing traditional separate busbar processing equipment and have become a mainstream choice for equipment upgrades among small and medium-sized electrical complete equipment manufacturers.

Overseas infrastructure development in Southeast Asia, the Middle East, and Central Asia is creating significant export opportunities. Basic hydraulic models remain the mainstay of the market, while the market penetration of upgraded CNC busbar processing machines continues to increase, indicating positive market prospects in the medium and long term.

Q1: Does the hydraulic busbar processing machine support customized dies and non-standard processing?

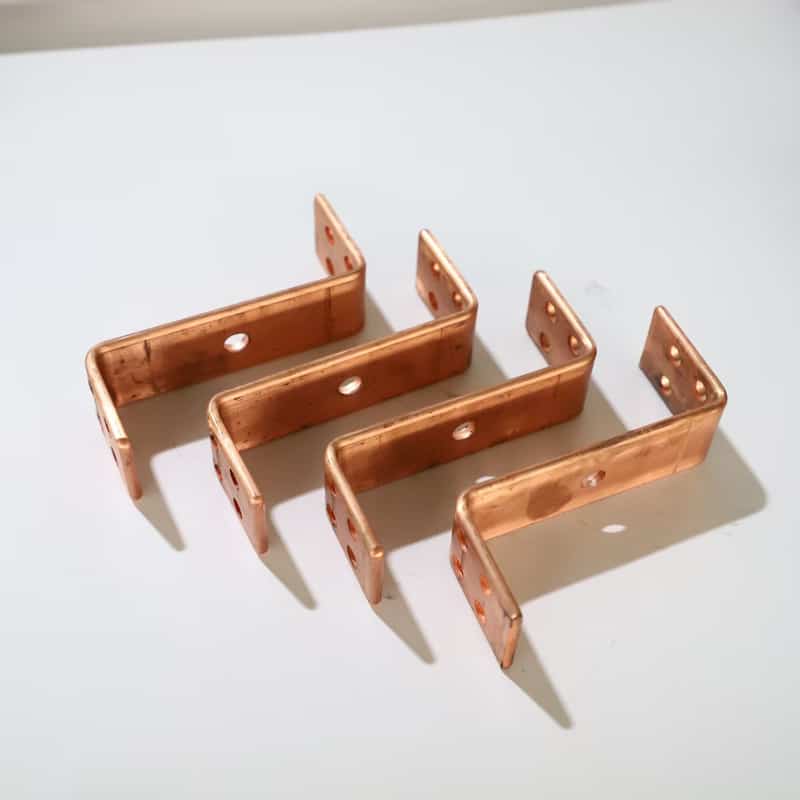

 A: Fenghua CNC provides comprehensive customization services. In addition to standard round-hole dies, we can customize elongated hole, square hole, D-shaped hole, and other special-shaped punching dies according to specific requirements. The machine also supports non-standard bending of L-shaped, Z-shaped, U-shaped, and other special-shaped busbars, making it suitable for processing non-standard drawings and customized busbar requirements for various electrical distribution cabinets.

Q2: Does the export hydraulic busbar processing machine have complete certifications and support overseas delivery?

A: As a professional direct manufacturer, Fenghua provides machines with complete CE and ISO 9001 certifications, complying with international electrical processing standards. The machines support customized voltage configurations of 220V, 380V, and 415V for different countries and regions, as well as 50/60Hz frequency compatibility. They can be directly exported to more than 30 countries and regions, including Southeast Asia, the Middle East, Europe, and South America, with professional export and customs clearance support.

Q3: Does the machine require installation after delivery?

A: The main unit of the hydraulic busbar processing machine is fully assembled and tested before leaving the factory.To prevent damage from impacts during transportation, the dies and accessories, foot pedal switch, touchscreen, and work area lighting are separately packed and shipped together with the main machine. After receiving the equipment, customers only need to install these accessories, and the machine can then be put into operation.

Q4:What standard dies and accessories are included with the machine?​

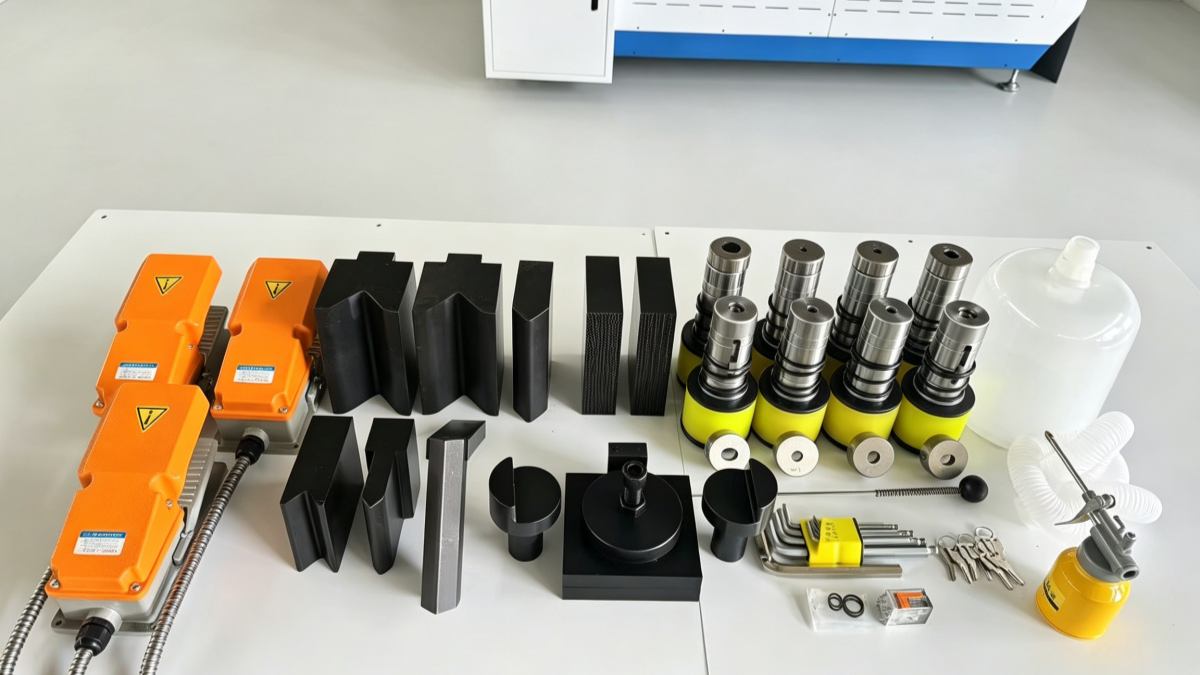

A: The machine is supplied with the following standard dies before shipment: 4 sets of bending dies, 1 set of embossing dies, 8 sets of punching dies, and 1 set of shearing dies.​ Die List:​ • Bending Dies: Small flat bending die (R3), large flat bending die (R5), horizontal bending die (R80 or R50), and U-shaped bending die.​ • Punching Dies: Φ7, Φ9, Φ11, Φ13, Φ17, Φ21, Φ13 × 18, and Φ17 × 21.​ • Shearing Die: 1 set.​ • Embossing Die: 1 set.

In addition to the standard dies listed above, we can also provide twist-bending dies, cable lug crimping dies, mark-free bending dies, one-step forming dies, corner rounding dies, and other customized tooling options.​ If you need customized dies according to your specific requirements, you can send your busbar processing die drawings to our technical engineers by email or WhatsApp. Based on your drawings and processing requirements, our engineers can design and manufacture the required busbar processing dies.
