303 Multifunctional Busbar Processing Machine

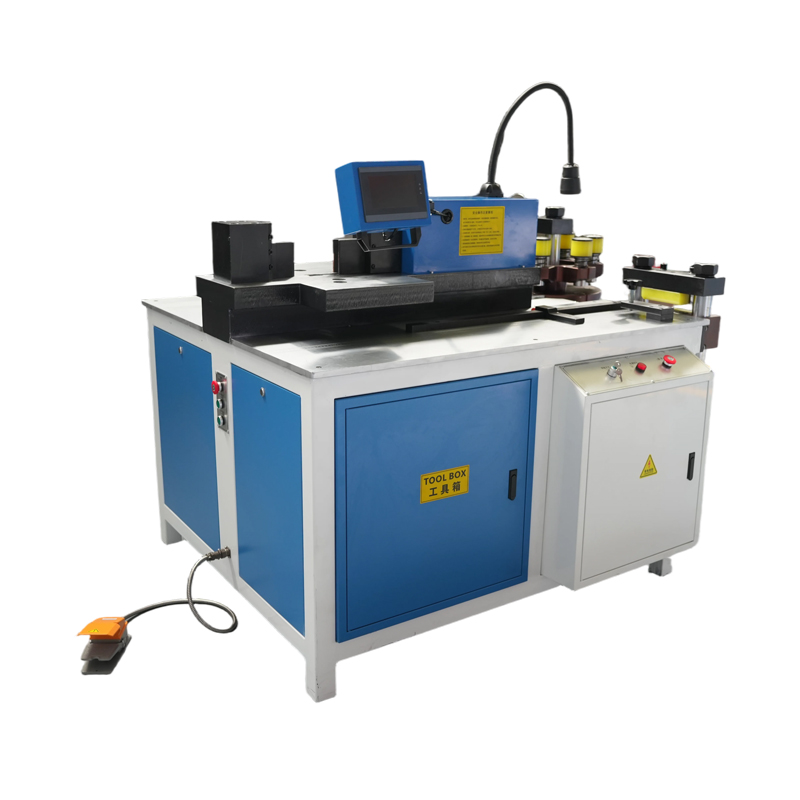

Fenghua CNC multifunctional busbar processing machine integrates punching, cutting, and bending functions into one machine. With three independent processing stations and flexible configurations, it is designed for efficient processing of copper and aluminum busbars.

Get Best Quote → WhatsApp us →

fenghuasales@gmail.com +86 13290298583

BOOK NOW →

Product Description

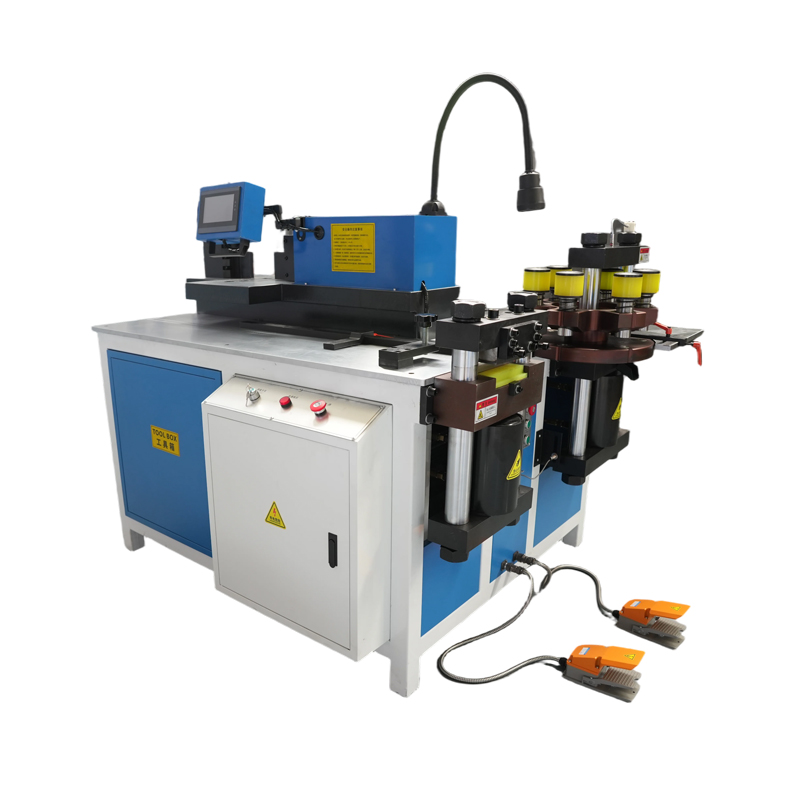

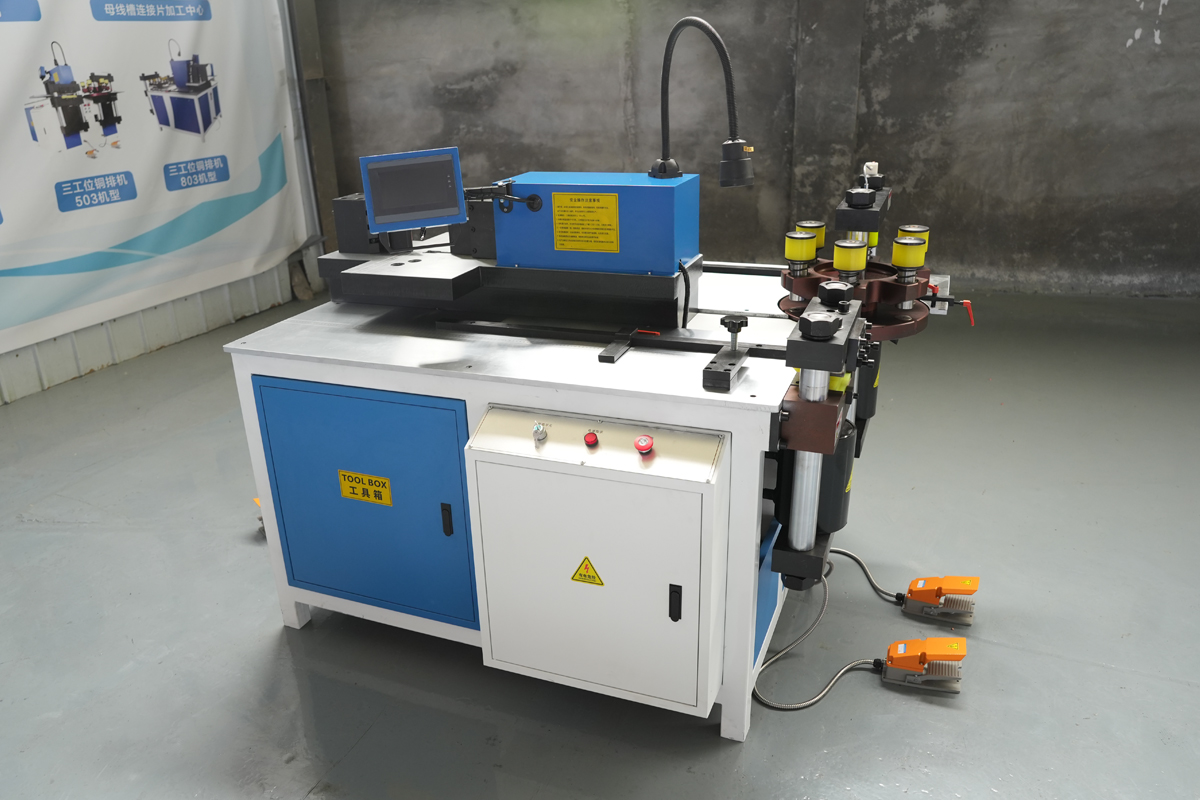

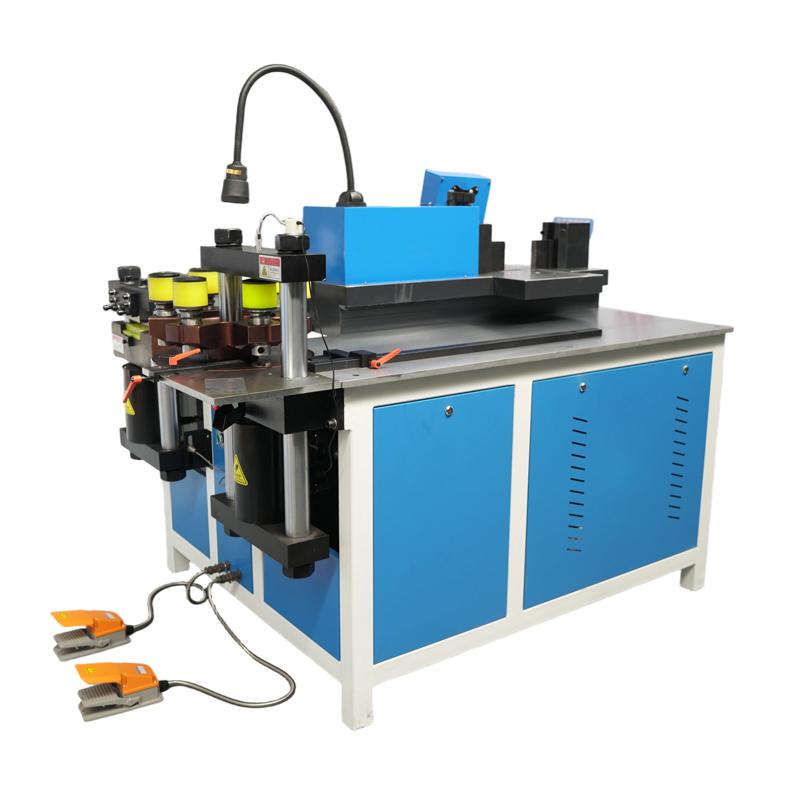

The multifunctional busbar processing machine is a three-station busbar processing machine that integrates punching, cutting, and bending functions into one unit. It is designed for multi-process processing of copper and aluminum busbars. The machine can process busbars up to 160 × 16 mm and is equipped with three independent processing units and separate hydraulic systems. Each station can operate independently, allowing multiple operators to perform punching, cutting, and bending operations simultaneously. With different tooling options, the machine can quickly complete a variety of busbar processing operations, improving overall production efficiency.

The bending unit is available in both open and closed configurations, allowing customers to choose the structure according to their specific processing requirements. The machine is suitable for general busbar processing applications in electrical panel, switchgear, and electrical equipment manufacturing, making it a practical and cost-effective busbar processing solution for small and medium-sized electrical manufacturers.

Parameters

The following parameters are the standard configuration parameters of the multifunctional busbar processing machine and can be selected according to actual processing requirements.

Function	Parameter	MX-303KSSK / MX-303BSSK
Punching Unit	Maximum Punching Force	400 kN
	Punching Diameter Range	φ4.3–φ34 mm
	Maximum Punching Thickness	16 mm
	Maximum Punching Width	160 mm
Shearing Unit	Maximum Shearing Force	400 kN
	Maximum Shearing Thickness	16 mm
	Maximum Shearing Width	160 mm
Bending Unit	Maximum Bending Force	400 kN
	Maximum Bending Thickness	16 mm
	Maximum Bending Width	160 mm
	Bending Accuracy	±0.2°
Horizontal Bending	Maximum Width	100 mm
Horizontal Bending	Maximum Thickness	10 mm

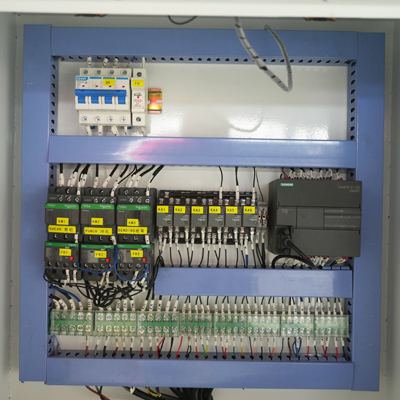

Other Parameters	PLC System	Siemens
	Positioning Method	Manual
	Control System	PLC + Touch Screen

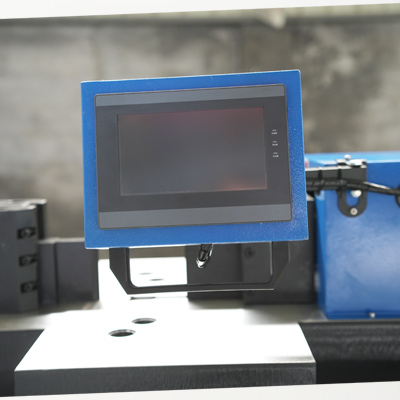

	Number of Touch Screens	1
	Motor Power	3 × 4 kW
	Standard Voltage	380 V / 50 Hz
	Overall Dimensions	1780 × 1400 × 1200 mm
	Machine Weight	1.5 T

Product Video

Product Features

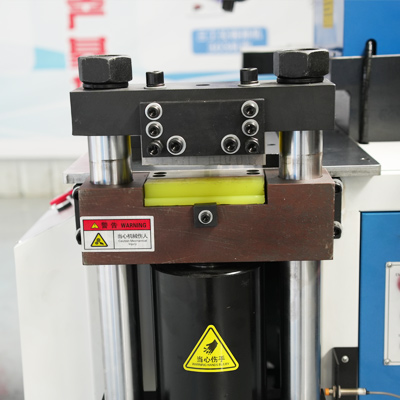

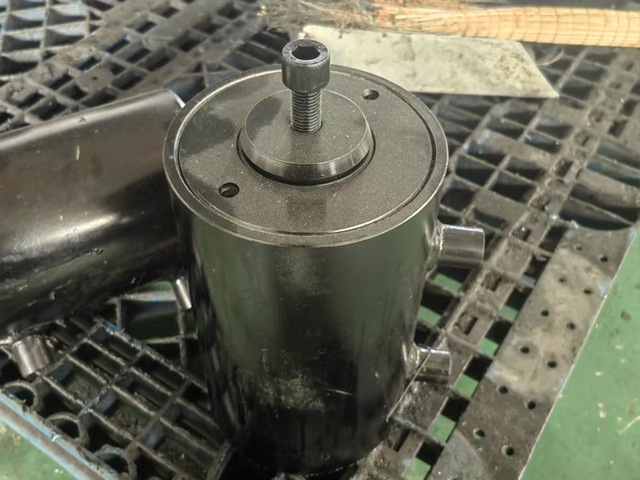

High-Quality Hydraulic Cylinders for Improved Machine Stability

The machine adopts high-quality hydraulic cylinders and imported seals, effectively reducing the risk of hydraulic oil leakage and ensuring stable operation over the long term.

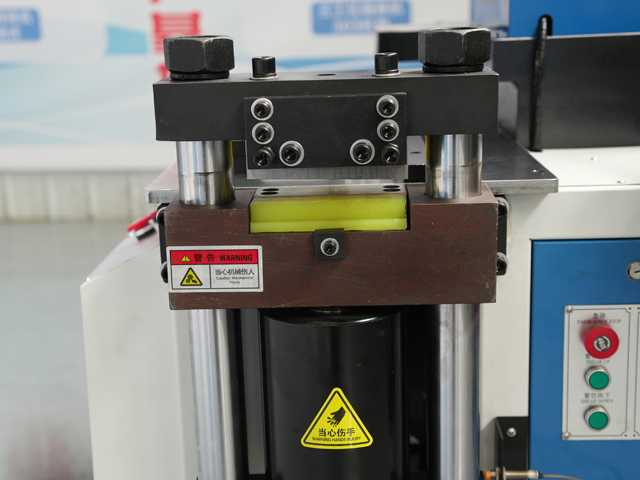

Thickened Middle Crossbeam Design for Improved Processing Durability

The machine adopts a thickened middle crossbeam structure to improve the overall rigidity and load-bearing capacity of the machine, enhance stability during punching and shearing operations, and extend the service life of the equipment.

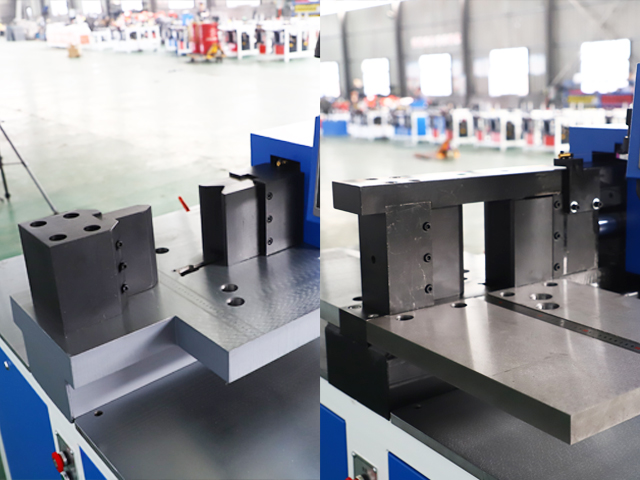

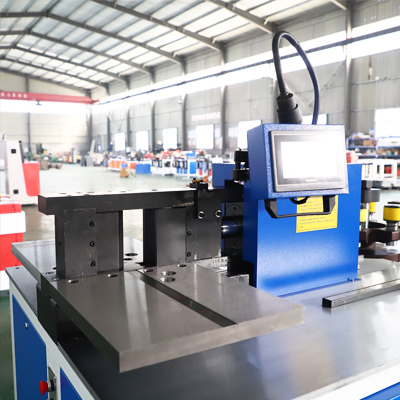

Open/Closed Bending Structure for Flexible Selection

The bending unit is available in both open and closed structural configurations. Customers can select the appropriate configuration according to their processing requirements, improving the machine's adaptability.

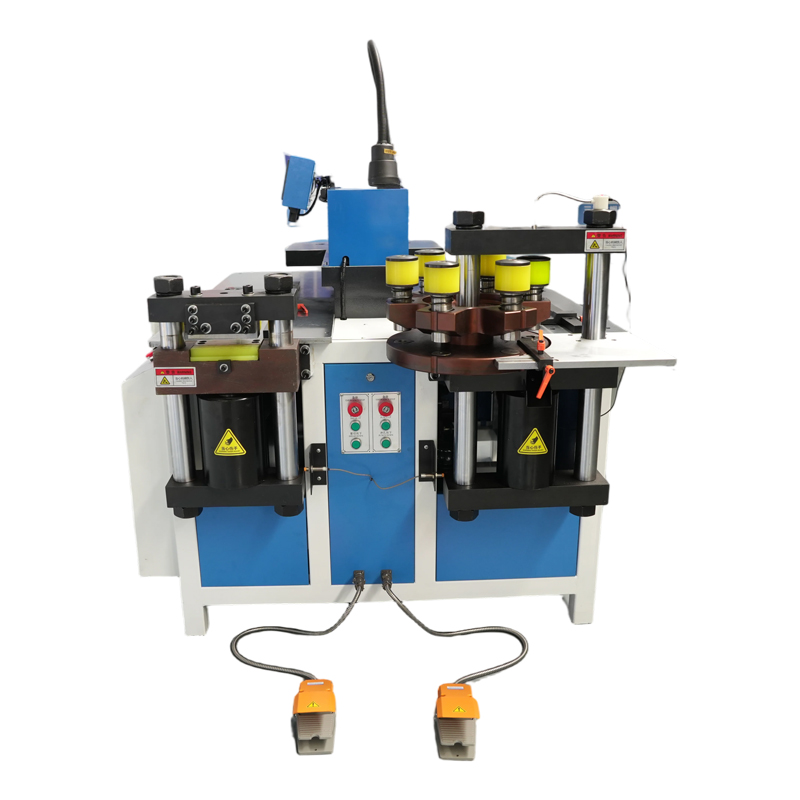

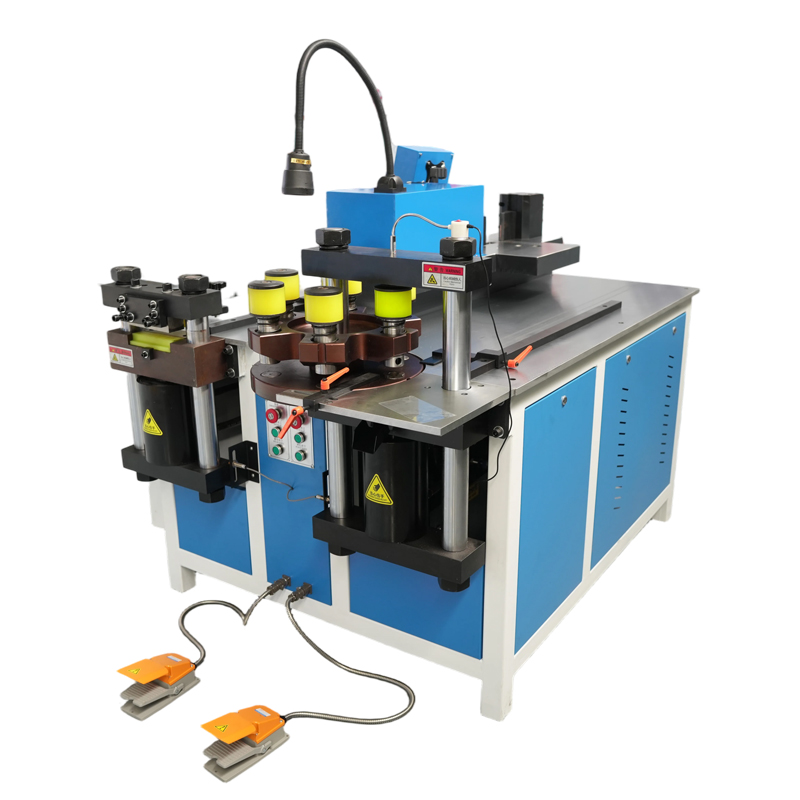

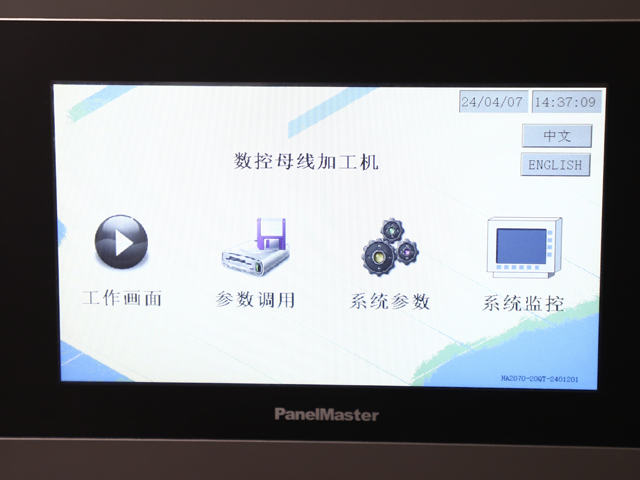

Independent Processing Units for More Flexible Operation

The three processing units can be operated independently. Users can select the corresponding processing station according to their production requirements, providing greater flexibility in machine operation.

Molds and Accessories

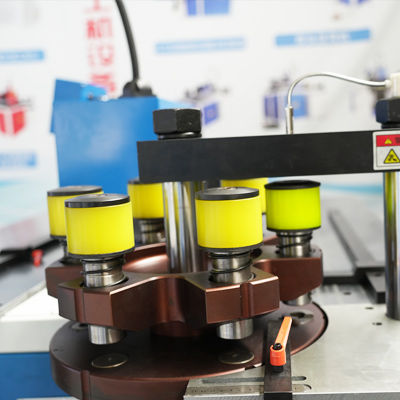

Standard Dies Equipped with the Main Machine

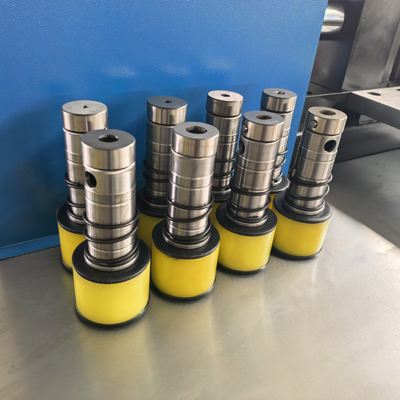

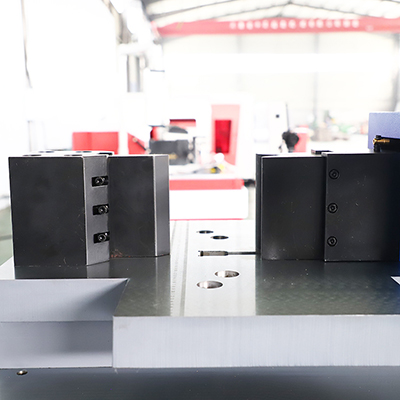

Punching Dies	φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21
Bending Dies	Small Flat Bending (R3), Large Flat Bending (R5), Horizontal Bending (R80 or R50), U-shaped Bending
Shearing Die	1 set
Embossing Die	1 set
Other Accessories

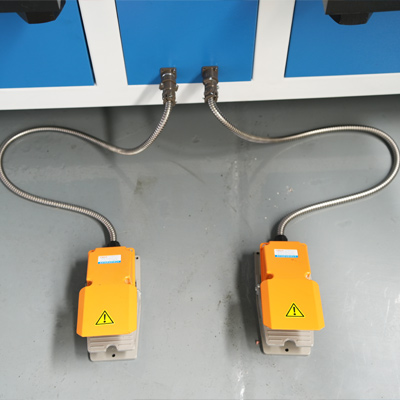

Foot Pedal Switch	3 pcs
Lubrication Device	1 set
Hex Key Set	1 set
Proximity Switch	1 pc
Relay	1 pc
Grease Gun	1 pc

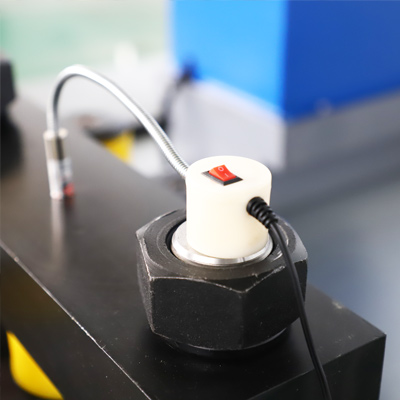

Laser Light	1 pc
Work Light	1 pc
Punch Pin	1 pc
